Metric Summary Cards

CoreCharts Desktop Workspace CoreCharts Desktop Workspace

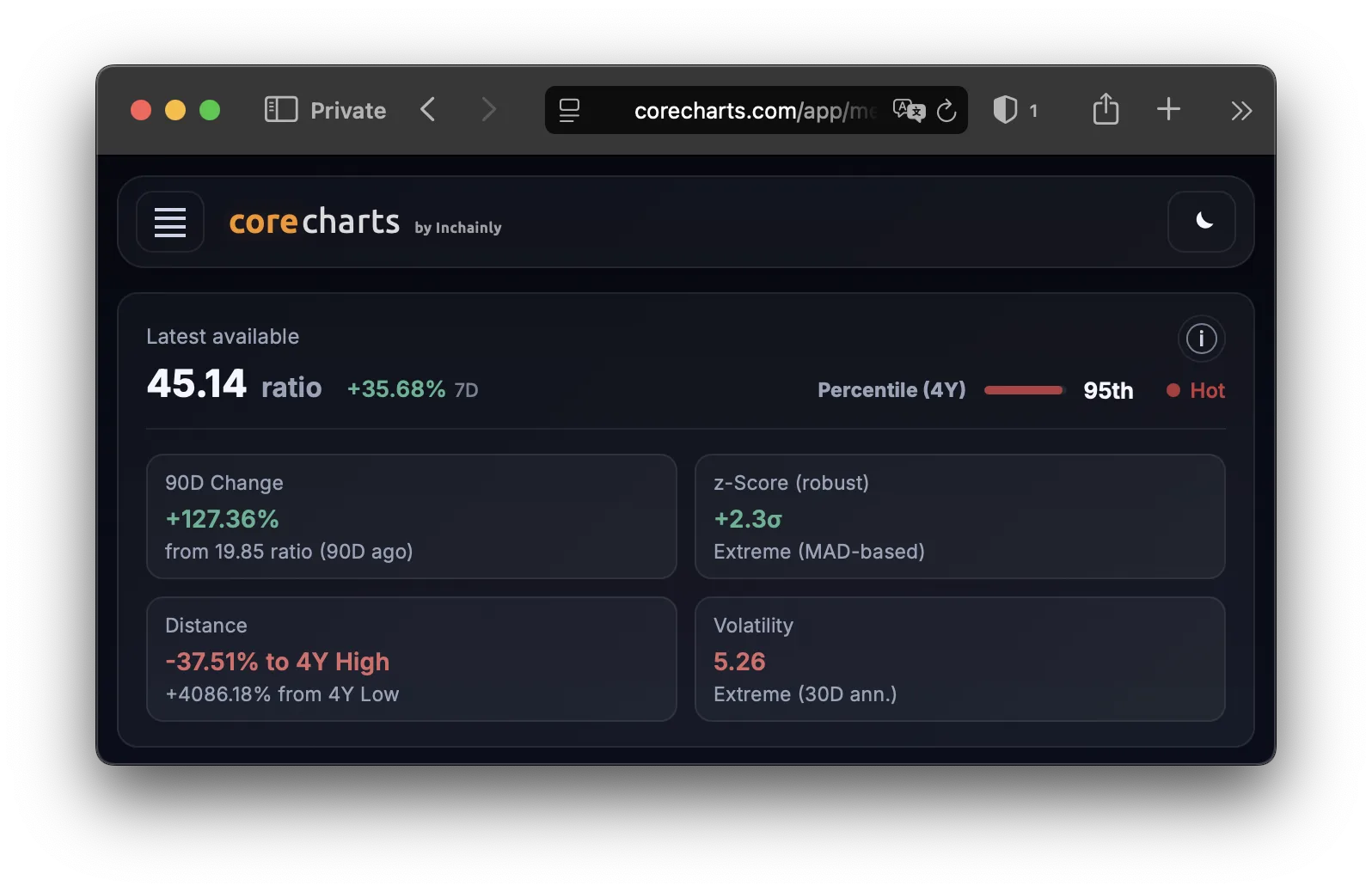

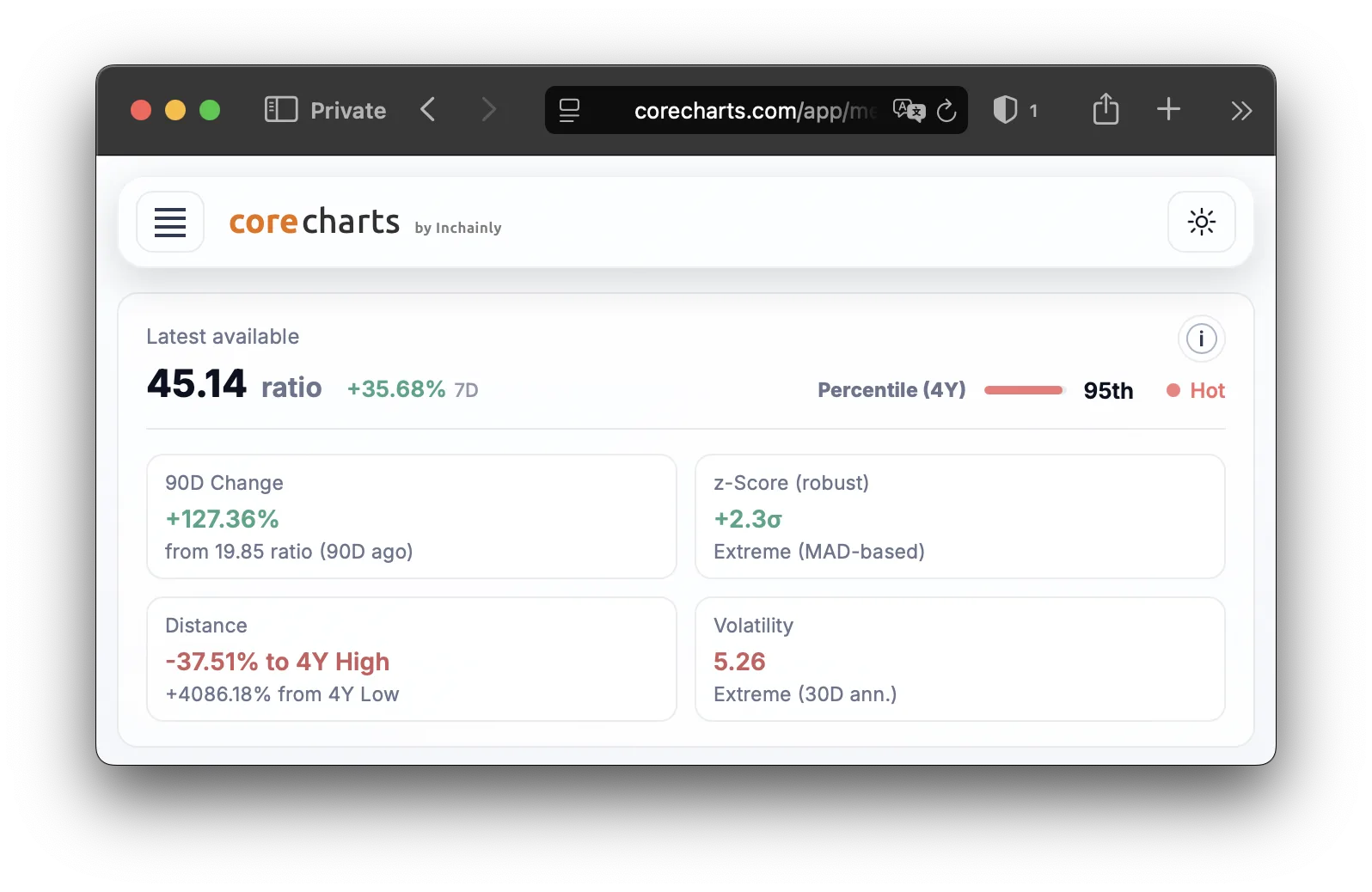

These cards give a compact readout of the selected series and place the latest value into statistical context.

Current value

xt

The latest available data point of the selected series.

Values are displayed in compact form such as K, M, B, and T when appropriate, while still preserving meaningful decimals.

Percentile (4Y) and Zone

Percentile4Y(xt)

Percentile shows where the current value sits within the last 4 years of daily data, using up to 1460 observations.

If the series is shorter than 4 years, all available history is used instead. If fewer than 90 observations are available, the percentile is hidden.

Zone groups that percentile into broad ranges for faster interpretation:

  • Cold — below the 10th percentile
  • Cool — 10th to 25th percentile
  • Neutral — 25th to 75th percentile
  • Warm — 75th to 90th percentile
  • Hot — 90th percentile and above

7D change

Δ7D(%)=xtxt7xt7×100

90D change

Δ90D(%)=xtxt90xt90×100

The line reading from ... (90D ago) shows the actual value from 90 days earlier:

xt90

Distance

Shows how far the current value is from the extremes of the same 4-year window used for the percentile. If 4 years of data are not available, full history is used instead.

To 4Y High

ToHigh4Y(%)=xtmax(x)|max(x)|×100

Example: −67% to 4Y High means the current value is 67% below the 4-year high.

From 4Y Low

FromLow4Y(%)=xtmin(x)|min(x)|×100

Example: +414% from 4Y Low means the current value is 414% above the 4-year low.

z-Score (robust)

zrobust,365D=xtmedian365D1.4826×MAD365D

A 365-day robust z-score based on the median and MAD, or Median Absolute Deviation.

The factor 1.4826 rescales MAD so it is comparable to standard deviation under a normal distribution.

The label, such as Normal, Elevated, or Extreme, follows common cutoffs around ±1σ and ±2σ.

Volatility

σ30D,ann=stdev(ln(vtvt1))×365

30-day annualized volatility based on log returns.

This value is only computed for strictly positive series.

Notes

All windows assume daily data.

Missing or non-finite values are skipped. If the series is shorter than a given window, all available data is used instead.
